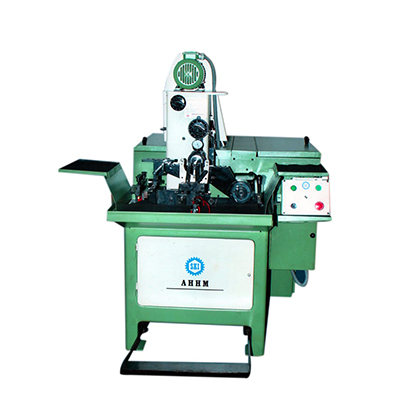

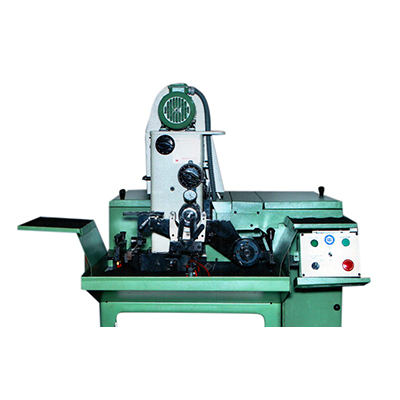

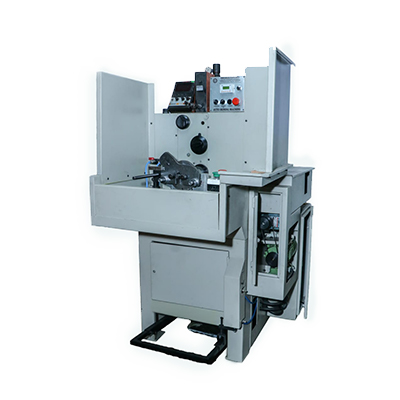

Auto- Stroking Horizontial Honing Machines

We are the most dependable Auto Stroke Honing Machine manufacturer and supplier from India. Our Auto Stroke Horizontal Honing Machines are highly popular in the markets due to its automatic size control with power stroking. Having a compact design and robust build our honing machines are extremely useful for heavy stock removal and high mirror like finish. We successfully managed to control the extreme less tolerance of today’s product requirement of wide range of bore and length, which makes our product a unique in the market.

Properties

• Durable
• Easy to use
• Automatic size control
• Power stroking
• Compact design
• Robust build
• Automatic sizing and zero shut-off facility
• Has suitable clamping fixtures
• Best results in surface finish
• Manual stroking & power stroking can be done

Technical Specifications

• Stroking speeds: 80,110,160,200,310 strokes
• Spindle speed :( 12 Nos.) 200 rpm to 2500 rpm.
• Spindle motor- 1HP
• Stroke motor- ½ HP
• Self-counted filter system
• Over all dimensions- (Lx Wx H) 1250 x 1350 x 1550 mm
• Weight: 430kg

Popular For

• Accuracy: Up to 2 microns
• ID range: 4mm to 70 mm for power stroking
• ID range: 4mm to 150 mm for manual stroking
• Maximum length honed: 250 mm

Specifications

Type Horizontal Honing Machine
Certification CE Certified
Colour Green
Voltage 230V
Automatic Grade Automatic
Power 1-3kw, 12-15kw, 3-6kw
Driven Type Electric
Production Capacity 10-50Tube/Minute
Warranty 1year
